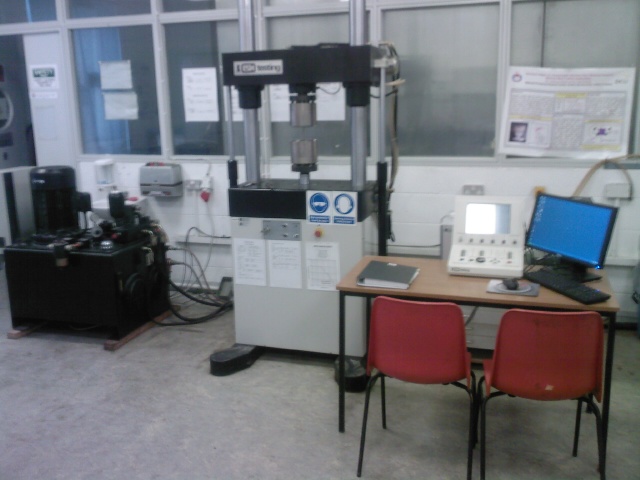

ESH Fatigue Machine
The ESH 100 KN Fatigue Machine is a hydraulic controlled materials testing machine
 |
|
Machine Accessories:
| 100 KN Loadcell | Serial No: S100/218 |
| 250 KN Loadcell | Serial No: S250/218 |
| Loadcell Amplifier | Serial No: D613 |
| Hydraulic Power Unit | Serial No: 6080 |
| PC with ESH software | |
| Extensometer strain 1 | Mode No: EXA20-1.25X 769 |
| Extensometer strain 2 | Model No: EXA20-0.5X 768 |
| Extensometer strain 3 | Model No: EXA20-2A 767 |
| High Temperature Extensometer | Serial No: 41 |
| Water Chiller | Model No: TAE 051 |
| Temperature Controller | Model No: ESH D624 |
| Thermocouple | Model No: K type |
| Heating Elements | Model No: R6121 |
| Pressure Gauge Controller Granville-Phillips | Model No: 275 Serial No: 55223 |
| Wedge grips flat 0 - 6 mm 2 sets | |
| Wedge grips flat 6 - 12 mm 2 sets | |
| Wedge grips round 4 - 8 mm 2 sets | |
| Wedge grips round 8 - 12 mm 1 set | |
| Threaded grips hydraulic M12 1 set |
For operational manuals please choose from the following links:
ESH Operational Manuals
- DCU_OP_INS_FATIGUE_MACHINE.pdf
- esh_chiller_tae_051(a).pdf
- Block_Editor.pdf
- Block_Run.pdf
- Control_System_Manual_MA34_1A.pdf
- Fracture_Mechanics_Analysis.pdf
- Fracture_Mechanics_Fracture.pdf
- Fracture_Mechanics_Precrack.pdf
- Low_Cycle_Fatigue.pdf
- Macro_Language.pdf
- Serial_link_protocol.pdf
- Tensile.pdf
- VCP.pdf
For service:
* ESH Compnay has been closed down Phoenix Calibration & Services has been set up by former employees.
-
Phoenix Calibration & Services Ltd
Unit 8, The Wallows Industrial Estate,
Fens Pool Avenue, Brierley Hill,
West Midlands
DY5 1QA
http://www.phoenixcalibration.co.uk/
